Spec

Supply Voltage:           4v to 15v

Current draw:              30mA

Case Material:             ABS

Weight :                       25Grams

Size:                            W34 x L58 with mounts x D13mm

Receiver:                     L1, 1575.42MHz

Update Frequency:     10Hz

Antenna Type:             Built-in

High Sensitivity:           -165dBm@Tracking -148dBm@Acquisition

Channels:                    66 acquisition Channels, 22 tracking channels

Operating Temp:         -40c to 85c

Log rate:                      1s

Micro SD Card:           4GB Supplied

File Type:                    .CSV

Failsafe below:            1000us

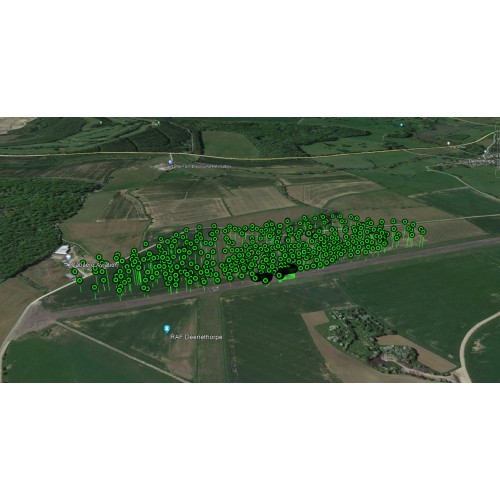

Data Recorded

Date

Time

Latitude

Longitude

Speed

Altitude

RX Voltage

Failsafe

Model Number

Note

The higher update frequency the more accurate data logged. The Micro SD memory card is 4GB and will store 255 Log files, when this is reached the oldest log file will be replaced automatically.
